Craftsman-inspired ranch
Craftsman Ranch Sample
- Home size
- 1,416 sq ft
- Bedrooms
- 3
- Bathrooms
- 2
- In this sample
- 7 sheets
Explore the drawings
A three-bedroom ranch with a gabled front porch, a rear patio, and a side carport. All seven pages show the design and drafting detail, from elevations and floor planning to foundation, roof, electrical, and plumbing layouts.
Every page from this sample set is shown below. Open any sheet at full size to zoom in, or open the watermarked PDF.
Portfolio sample only. Names, addresses, and project locations have been removed, and every page carries a SAMPLE watermark. These drawings are provided for portfolio review only and are not for construction.

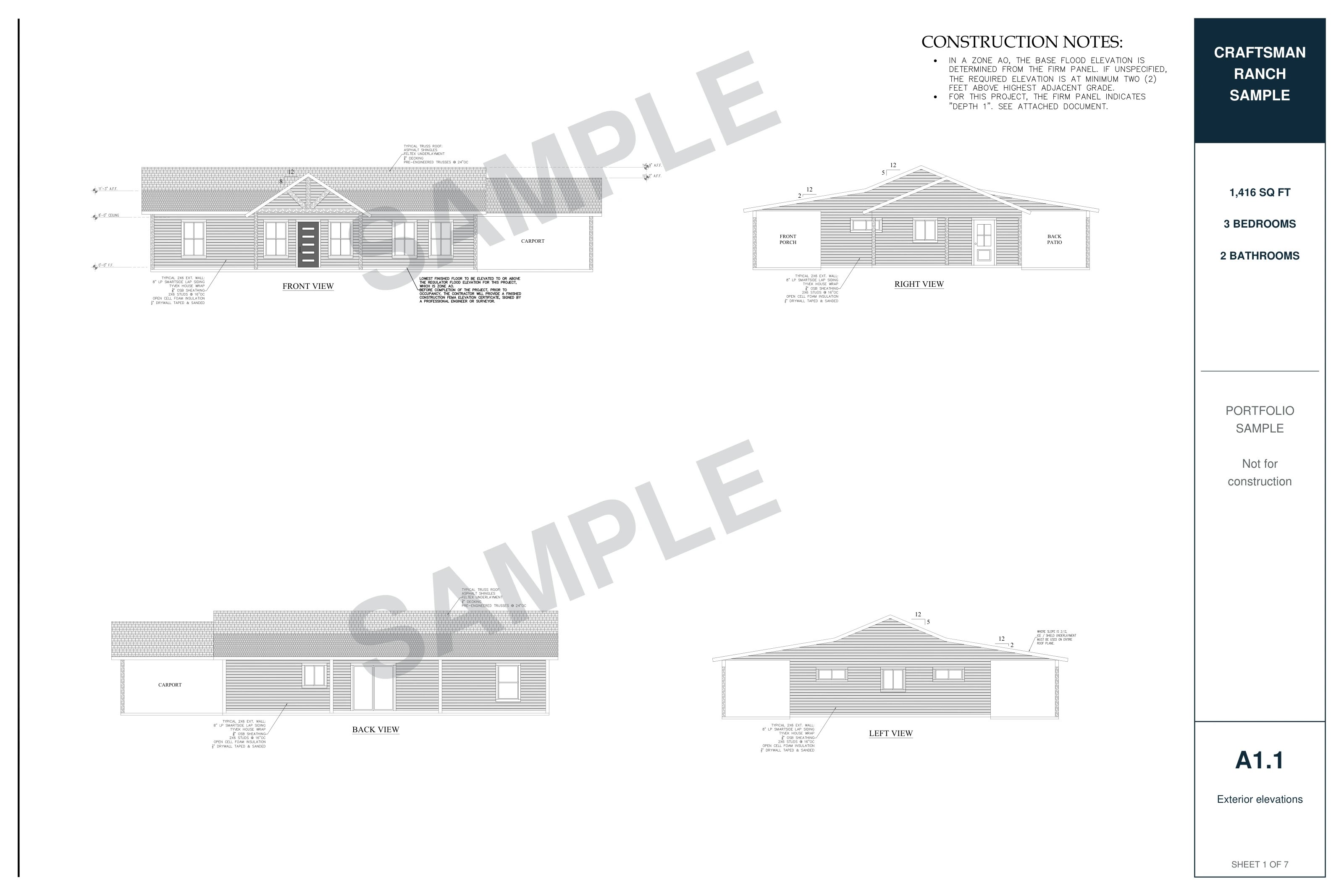

- Open full-size sheet : Exterior elevations (opens in a new tab)
Page 1 of 7 · A1.1
Exterior elevations

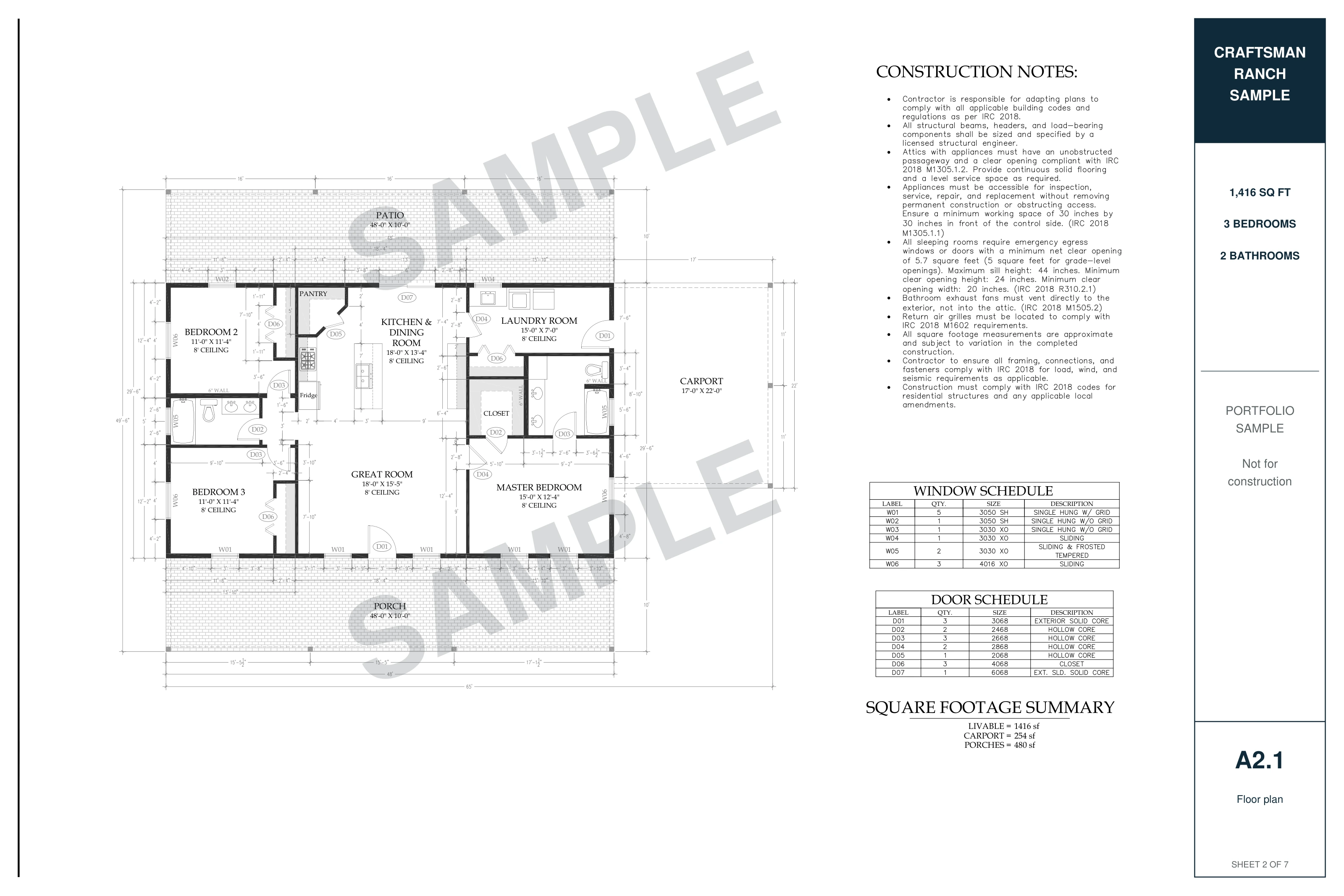

- Open full-size sheet : Floor plan (opens in a new tab)
Page 2 of 7 · A2.1
Floor plan
- Open full-size sheet : Foundation plan (opens in a new tab)
Page 3 of 7 · A3.1
Foundation plan
- Open full-size sheet : J-bolt placement (opens in a new tab)
Page 4 of 7 · A3.2
J-bolt placement
- Open full-size sheet : Roof plan & framing (opens in a new tab)
Page 5 of 7 · A4.1
Roof plan & framing
- Open full-size sheet : Electrical plan (opens in a new tab)
Page 6 of 7 · A5.1
Electrical plan
- Open full-size sheet : Plumbing plan (opens in a new tab)
Page 7 of 7 · A6.1
Plumbing plan
