European-inspired traditional

Custom Home Sample

Home size
4,280 sq ft
Bedrooms
3
Bathrooms
3.5
In this sample
4 sheets

Explore the drawings

A European-inspired traditional home, presented through exterior elevations and two floor-plan sheets. Explore the proportions, room layouts, and drafting detail across all four sample pages.

Every page from this sample set is shown below. Open any sheet at full size to zoom in, or open the watermarked PDF.

Open PDF (opens in a new tab) Download sample PDF
Portfolio sample only. Names, addresses, and project locations have been removed, and every page carries a SAMPLE watermark. These drawings are provided for portfolio review only and are not for construction.

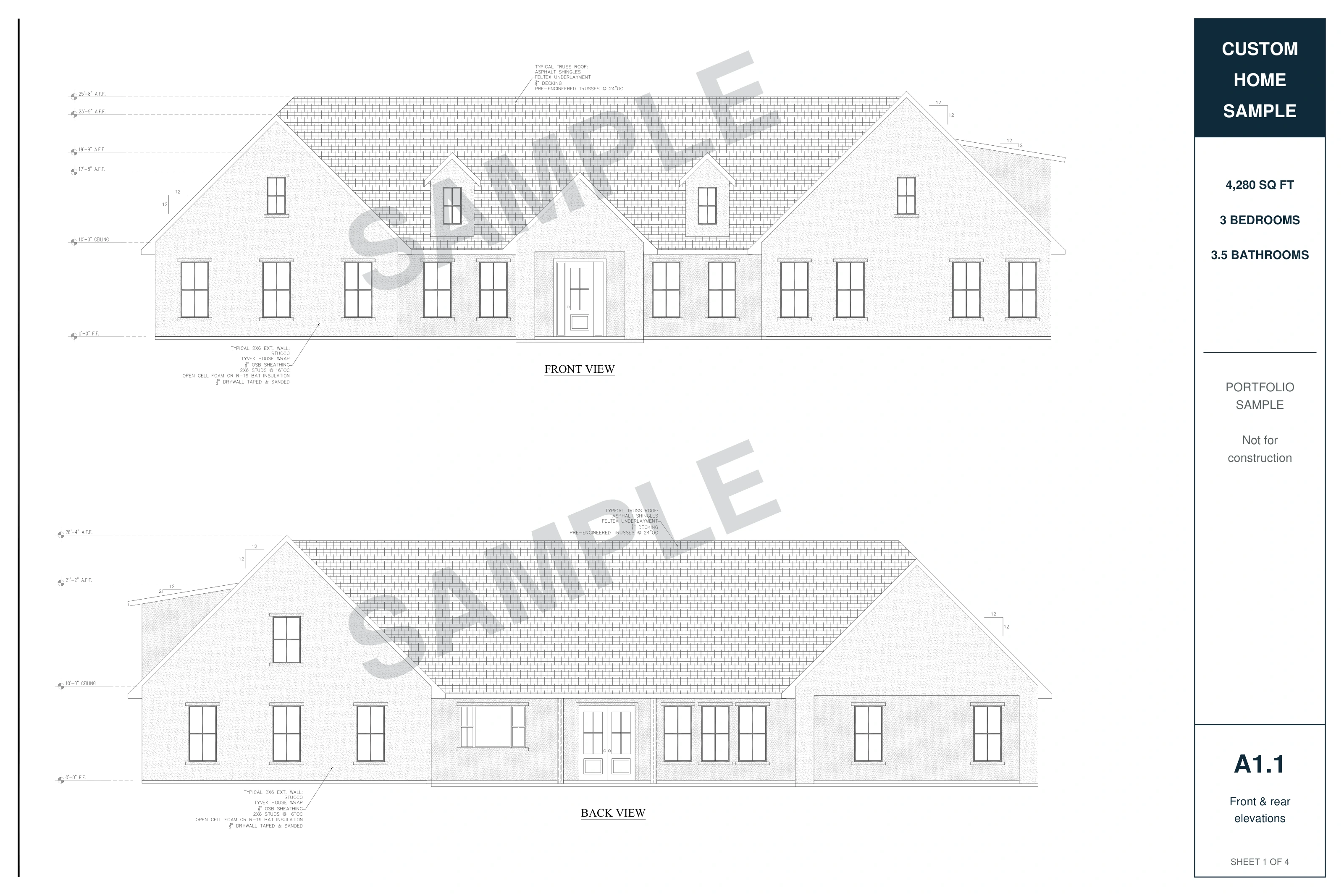

  1. Page 1 of 4 · A1.1

    Front & rear elevations

    Open full-size sheet : Front & rear elevations (opens in a new tab)
    Front & rear elevations, sheet A1.1; anonymized architectural drawing with SAMPLE watermark.

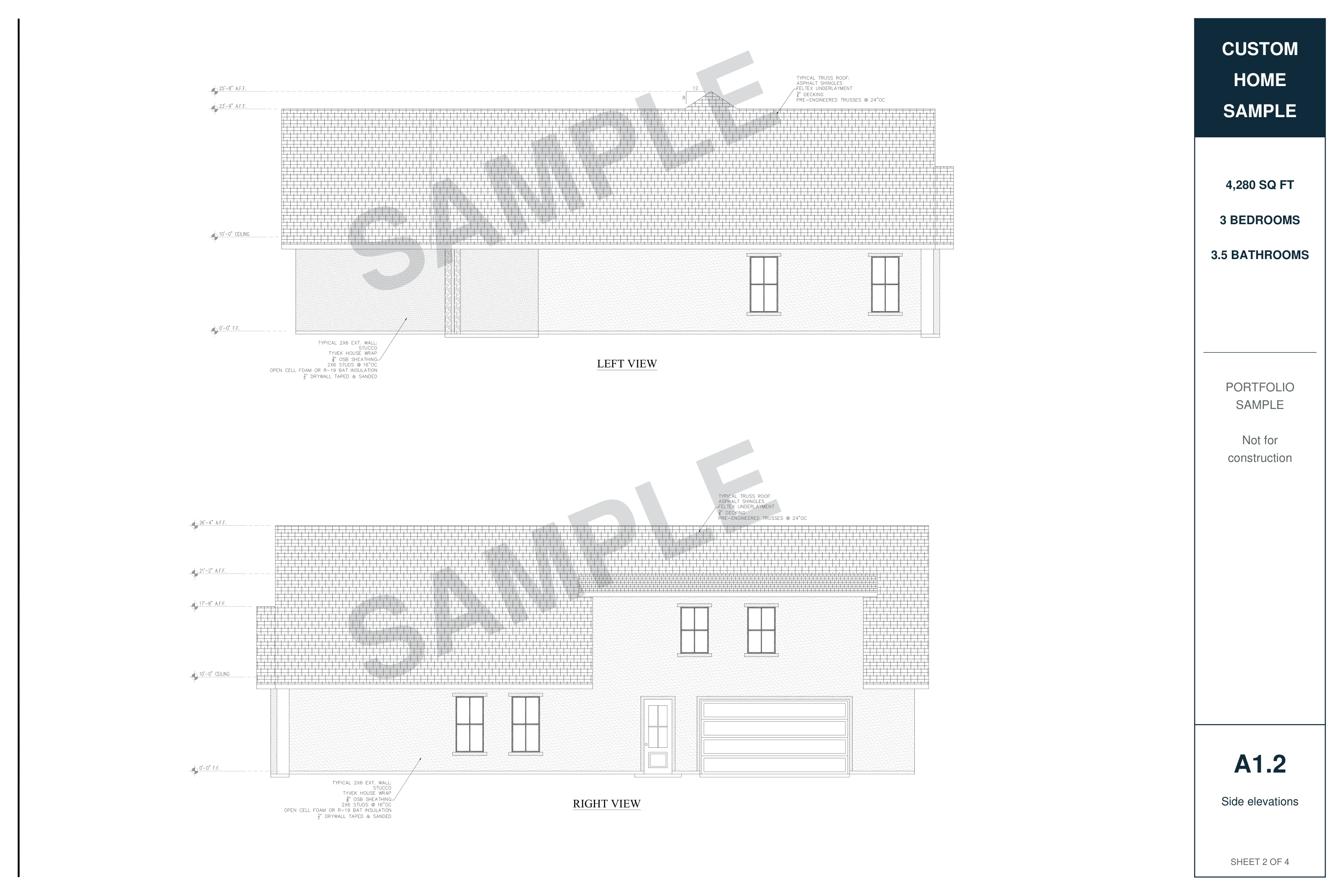

  2. Page 2 of 4 · A1.2

    Side elevations

    Open full-size sheet : Side elevations (opens in a new tab)
    Side elevations, sheet A1.2; anonymized architectural drawing with SAMPLE watermark.

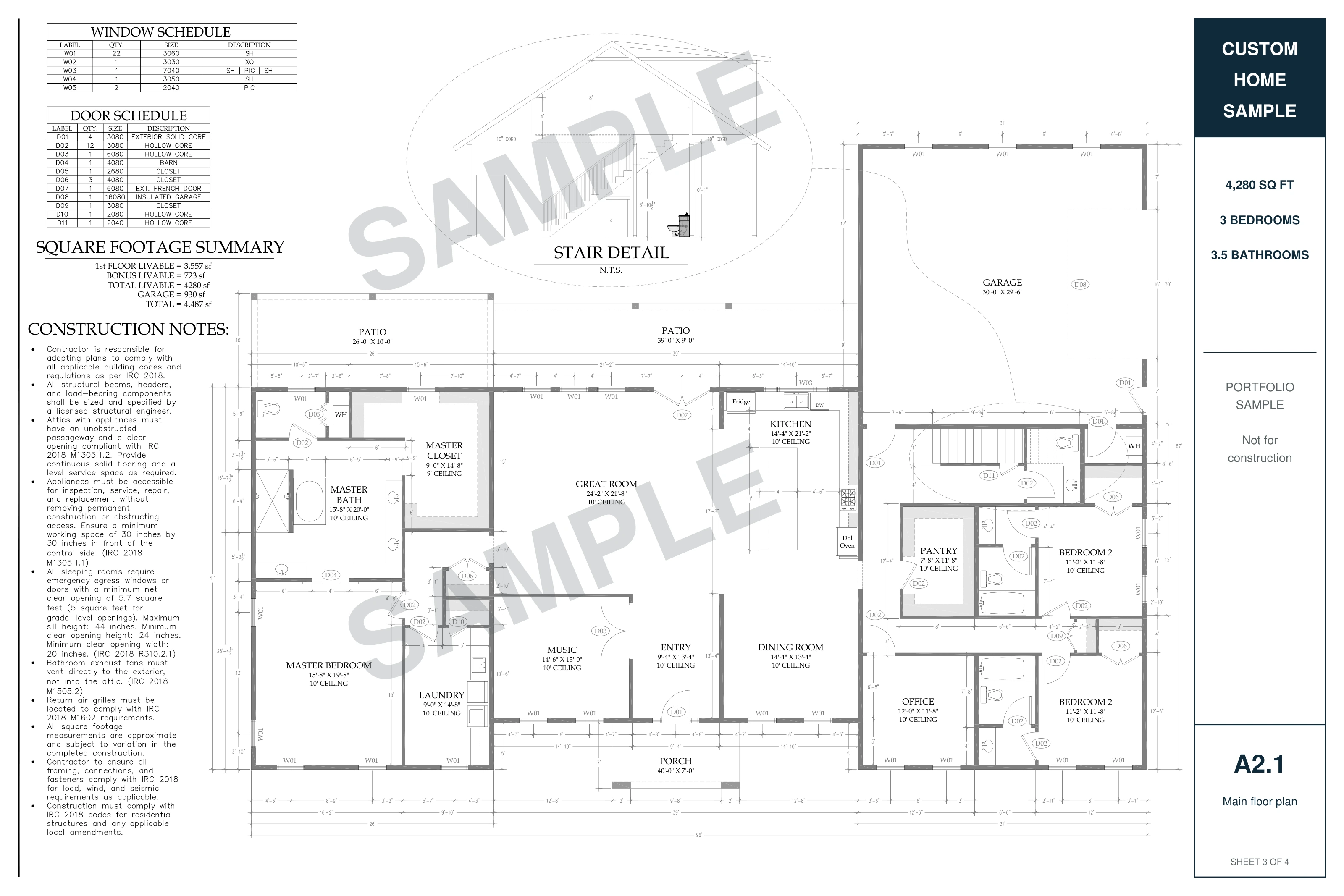

  3. Page 3 of 4 · A2.1

    Main floor plan

    Open full-size sheet : Main floor plan (opens in a new tab)
    Main floor plan, sheet A2.1; anonymized architectural drawing with SAMPLE watermark.

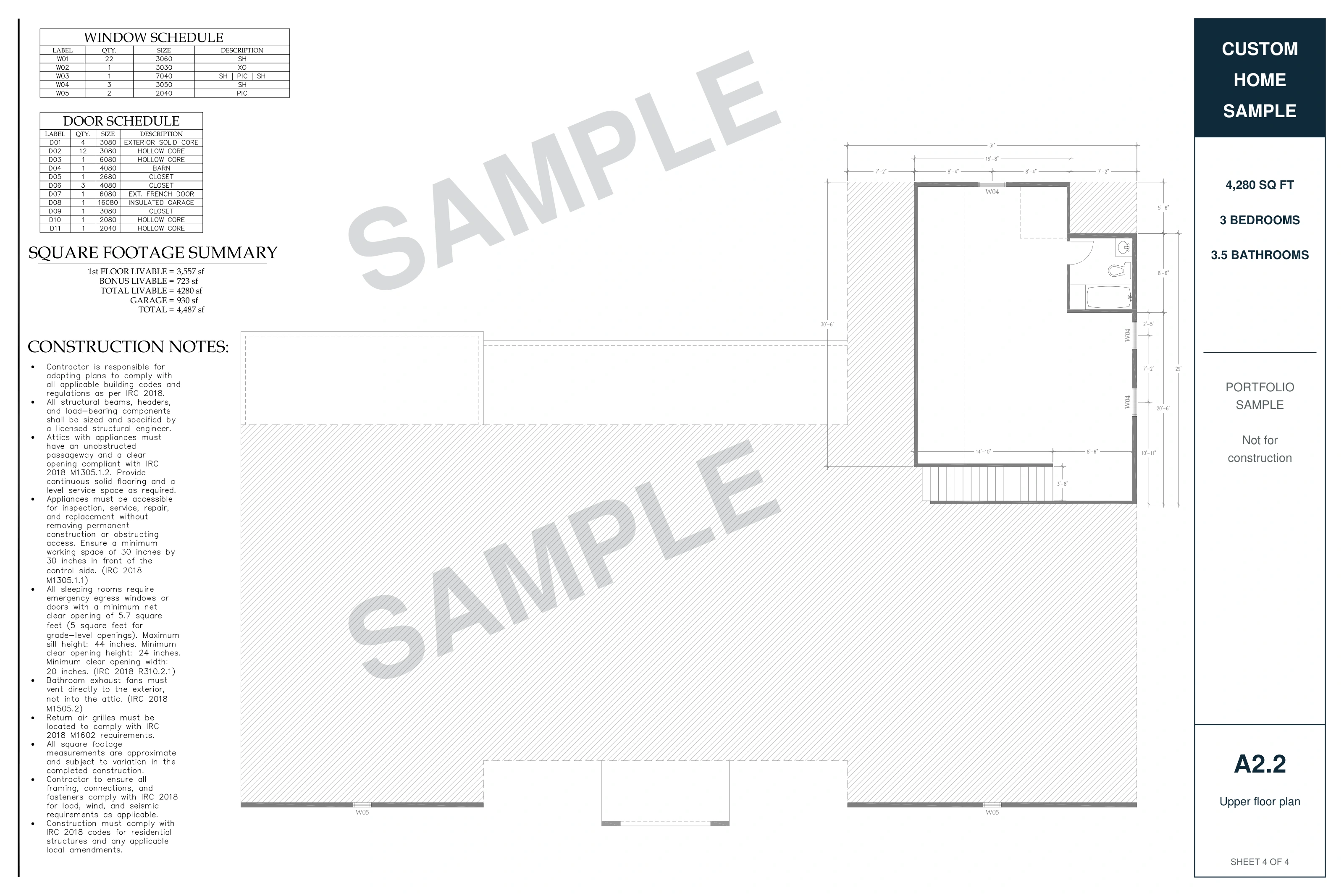

  4. Page 4 of 4 · A2.2

    Upper floor plan

    Open full-size sheet : Upper floor plan (opens in a new tab)
    Upper floor plan, sheet A2.2; anonymized architectural drawing with SAMPLE watermark.
