Modern farmhouse ranch
Modern Farmhouse Sample
- Home size
- 4,063 sq ft
- Bedrooms
- 4
- Bathrooms
- 4
- In this sample
- 8 sheets
Explore the drawings
A spacious single-story home with an open great room, a large game room with wet bar, a walk-in pantry, and covered porches. Explore all eight sheets, including the site plan, elevations, floor plan, foundation, roof, electrical, and mechanical plans.
Every page from this sample set is shown below. Open any sheet at full size to zoom in, or open the watermarked PDF.
Portfolio sample only. Names, addresses, and project locations have been removed, and every page carries a SAMPLE watermark. These drawings are provided for portfolio review only and are not for construction.

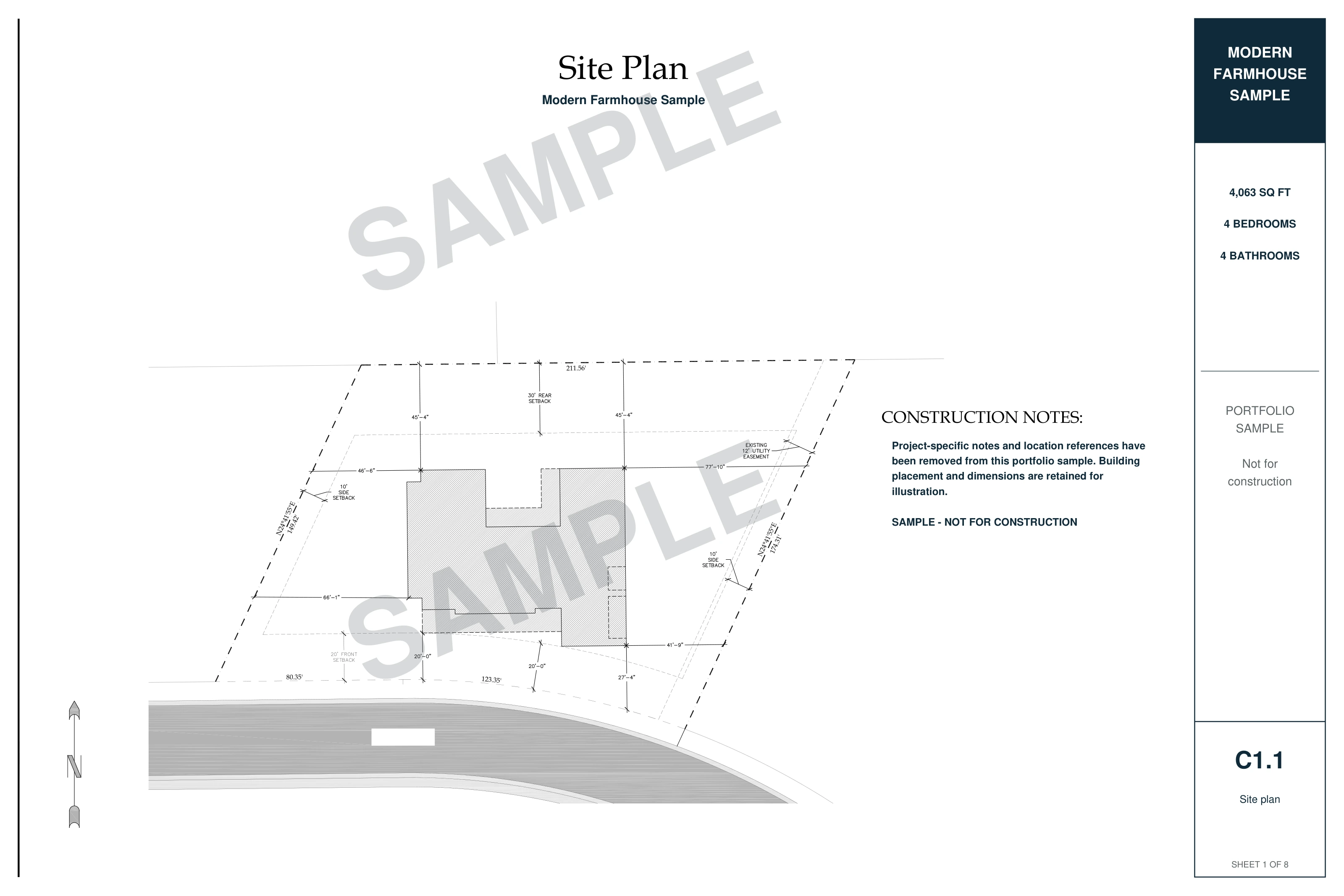

- Open full-size sheet : Site plan (opens in a new tab)
Page 1 of 8 · C1.1
Site plan

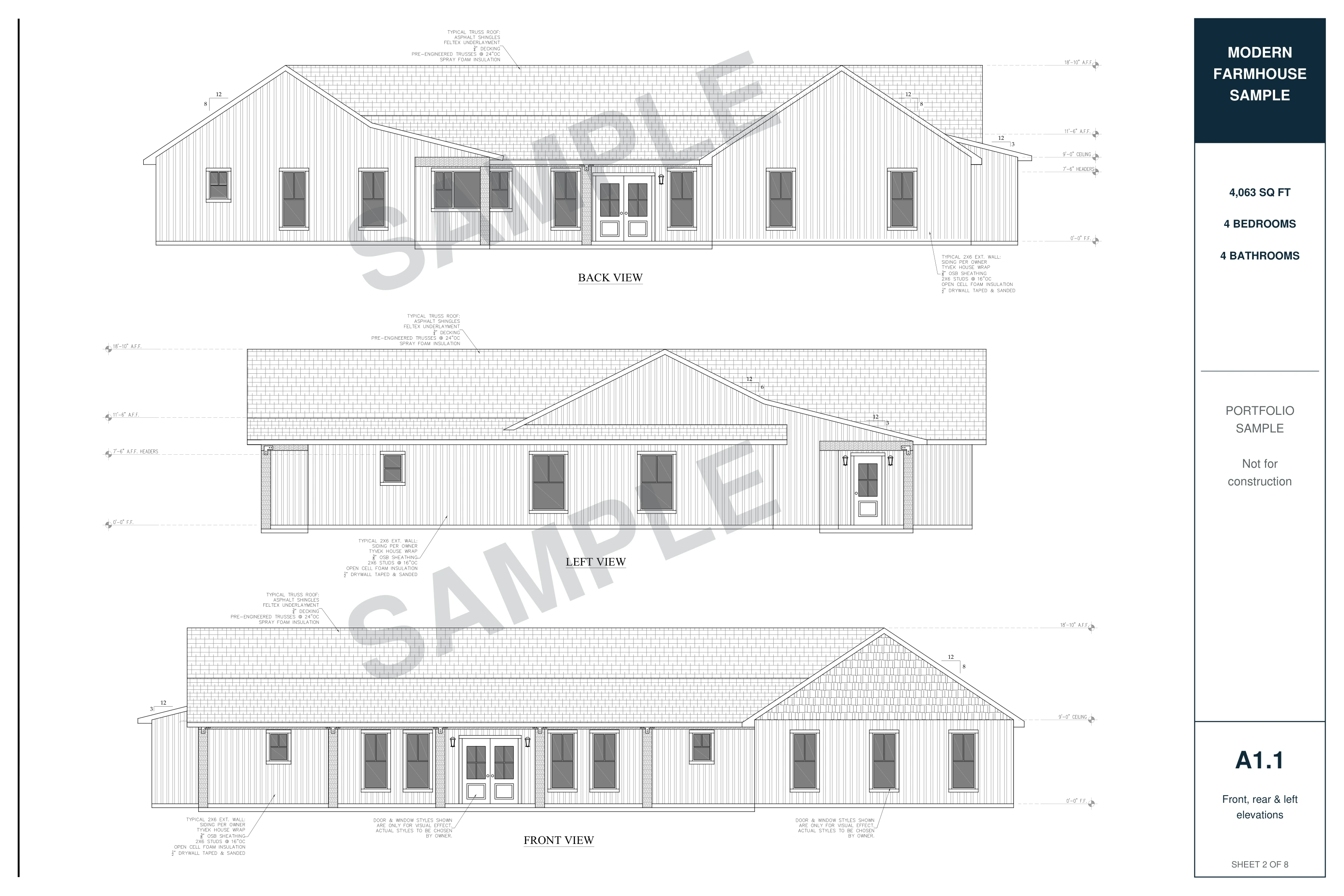

- Open full-size sheet : Front, rear & left elevations (opens in a new tab)
Page 2 of 8 · A1.1
Front, rear & left elevations

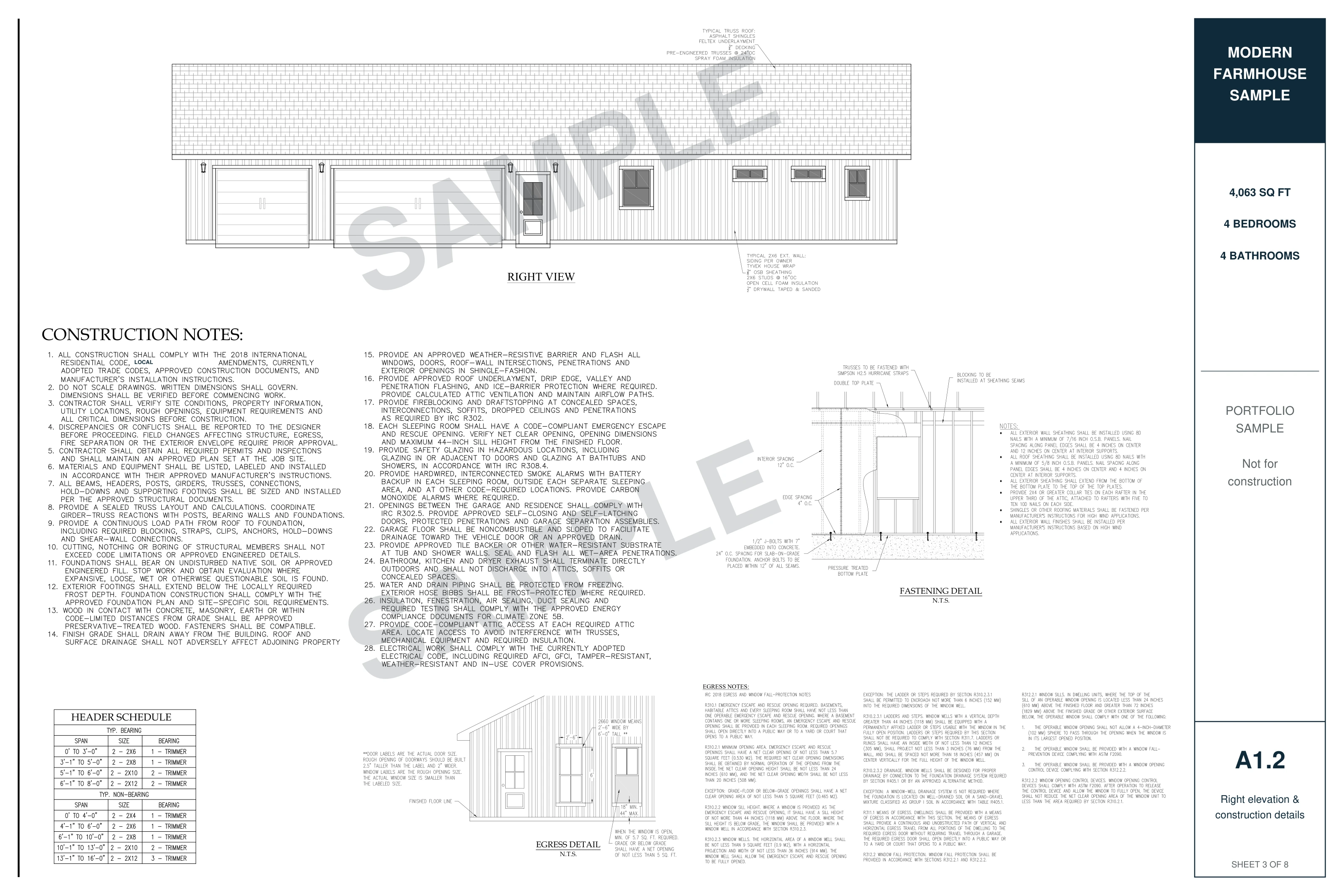

- Open full-size sheet : Right elevation & construction details (opens in a new tab)
Page 3 of 8 · A1.2
Right elevation & construction details

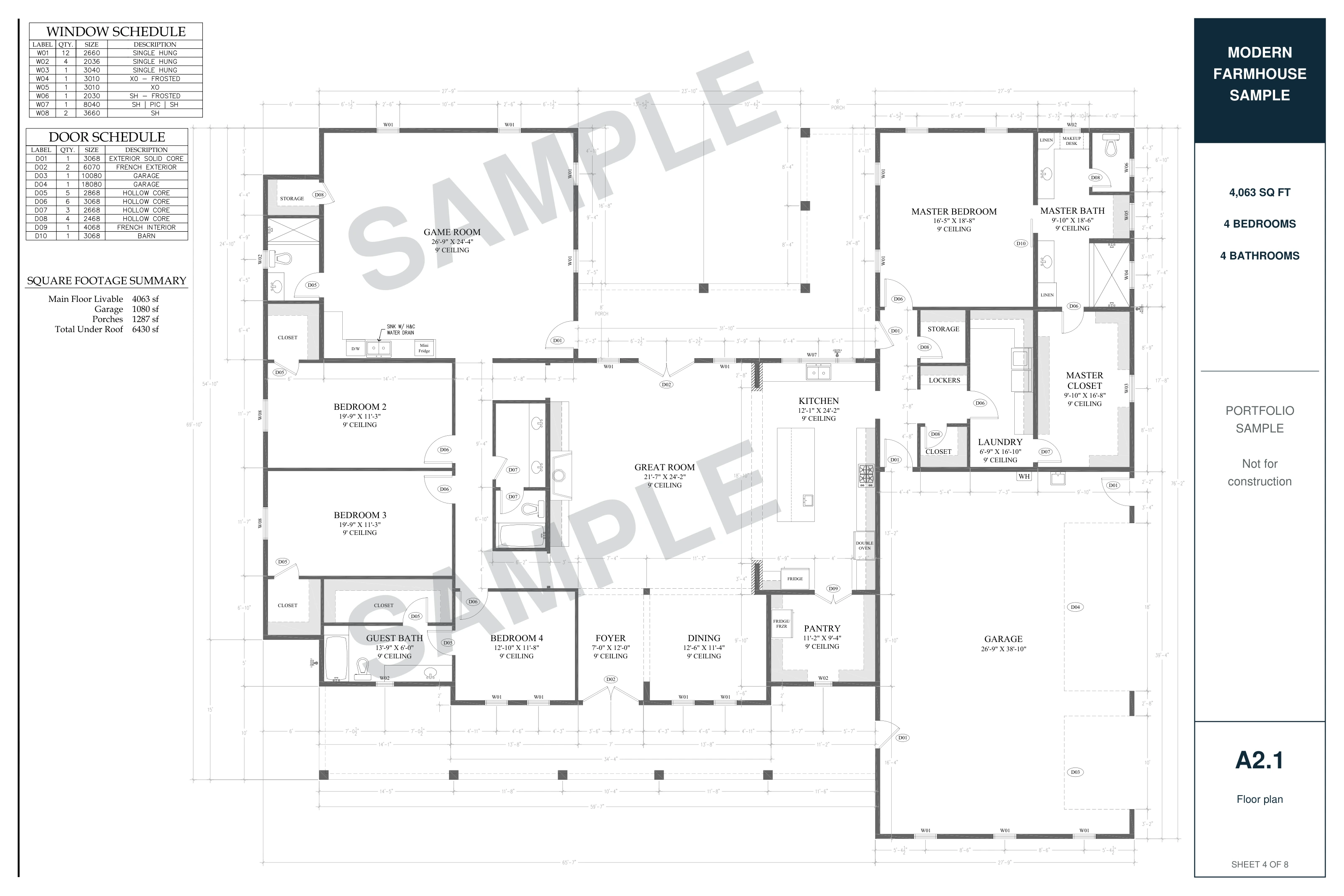

- Open full-size sheet : Floor plan (opens in a new tab)
Page 4 of 8 · A2.1
Floor plan

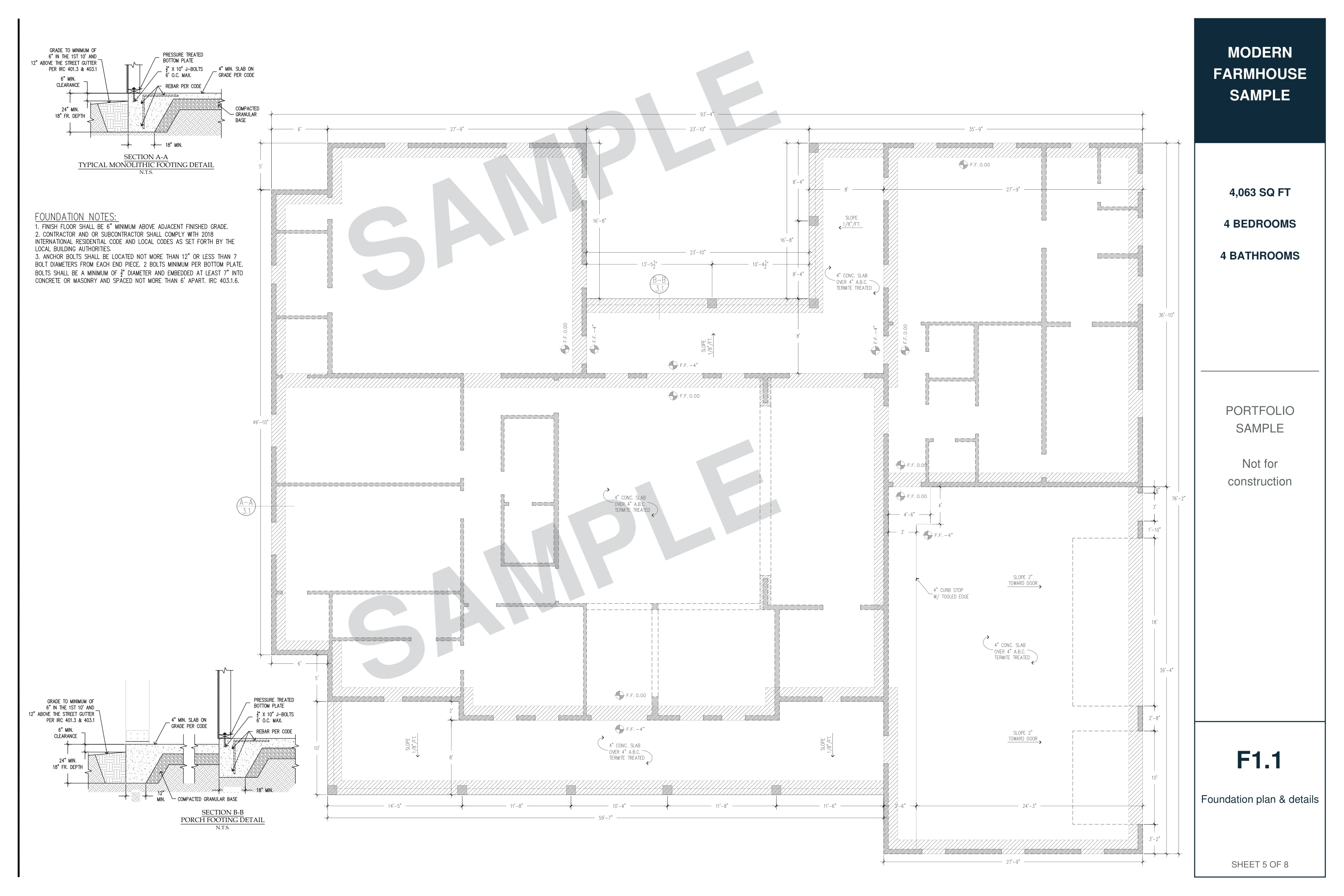

- Open full-size sheet : Foundation plan & details (opens in a new tab)
Page 5 of 8 · F1.1
Foundation plan & details

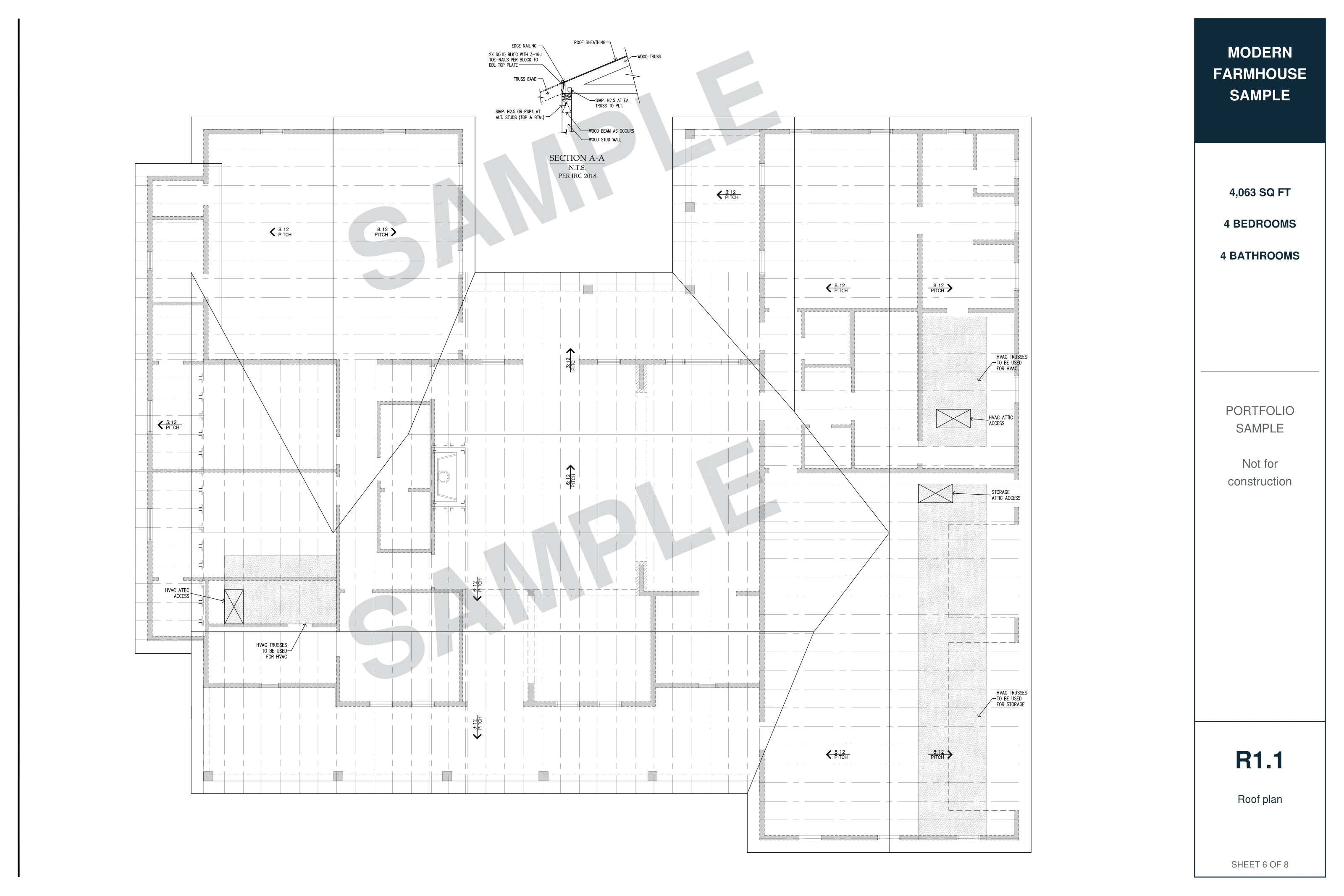

- Open full-size sheet : Roof plan (opens in a new tab)
Page 6 of 8 · R1.1
Roof plan

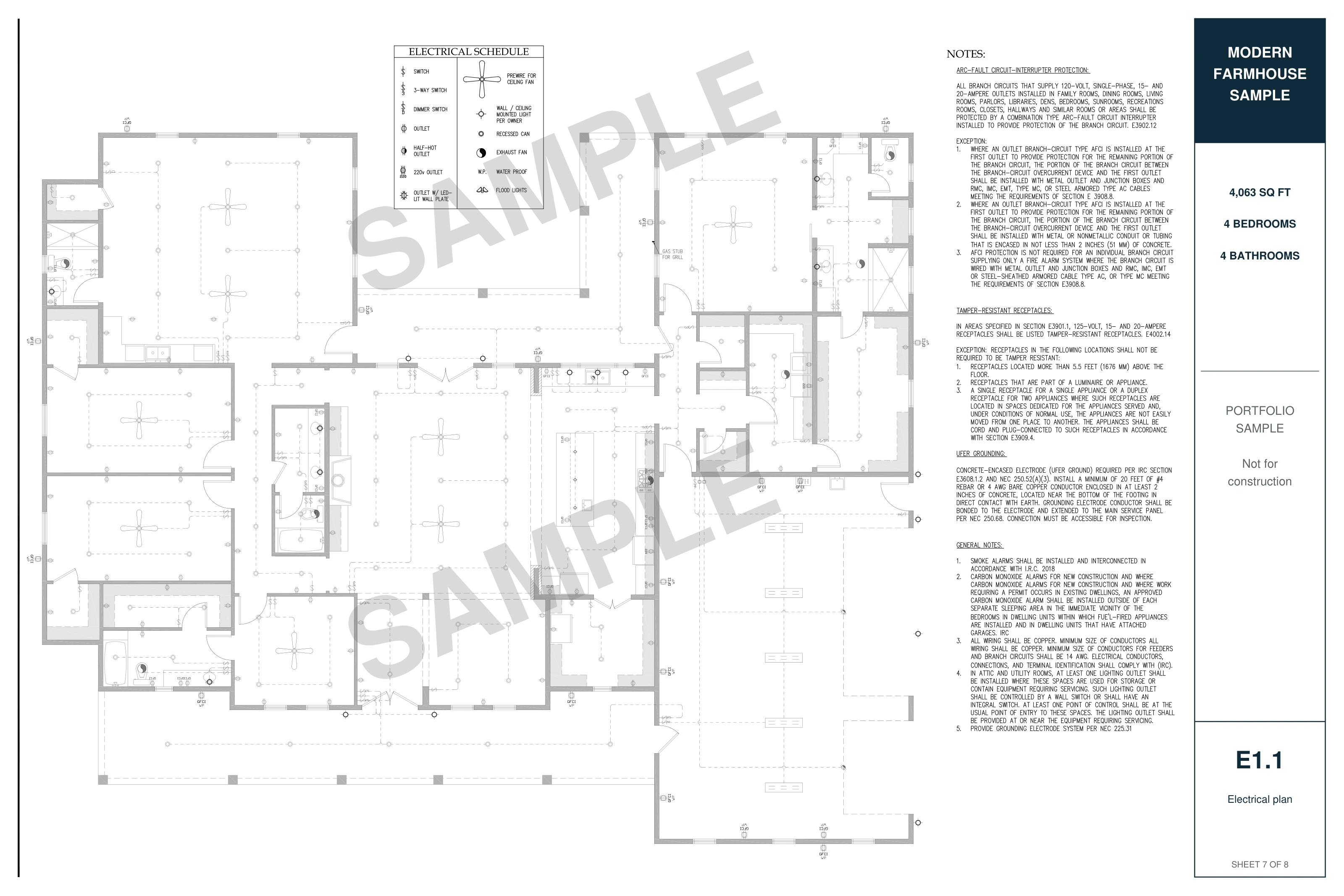

- Open full-size sheet : Electrical plan (opens in a new tab)
Page 7 of 8 · E1.1
Electrical plan

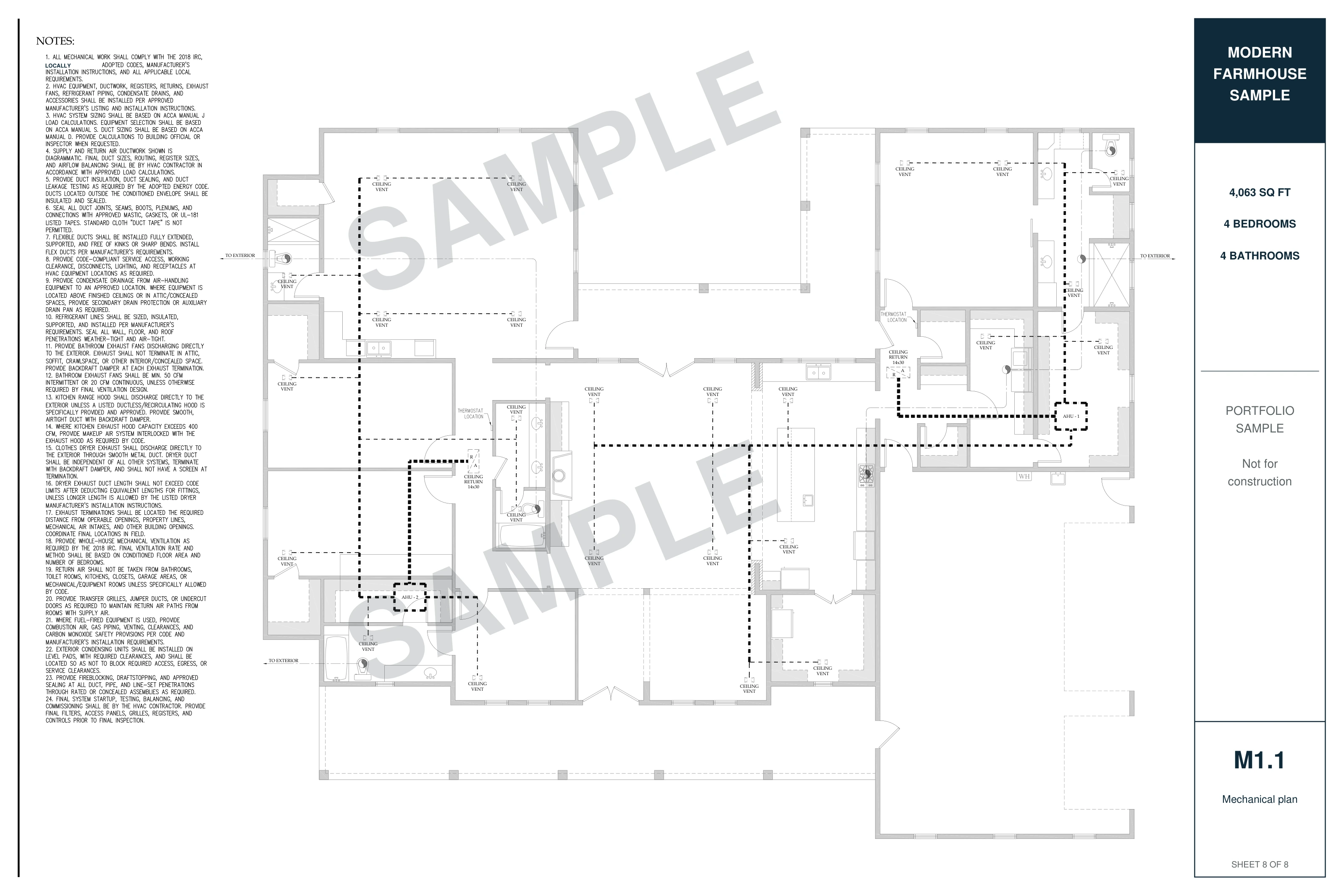

- Open full-size sheet : Mechanical plan (opens in a new tab)
Page 8 of 8 · M1.1
Mechanical plan
