Traditional ranch

Single-Story Ranch Sample

Home size
1,535 sq ft
Bedrooms
3
Bathrooms
2
In this sample
6 sheets

Explore the drawings

A single-story ranch with a front-facing two-car garage and a practical three-bedroom layout. View the elevations, floor plan, foundation, roof, electrical, and plumbing sheets.

Every page from this sample set is shown below. Open any sheet at full size to zoom in, or open the watermarked PDF.

Open PDF (opens in a new tab) Download sample PDF
Portfolio sample only. Names, addresses, and project locations have been removed, and every page carries a SAMPLE watermark. These drawings are provided for portfolio review only and are not for construction.

  1. Page 1 of 6 · A1.1

    Exterior elevations

    Open full-size sheet : Exterior elevations (opens in a new tab)

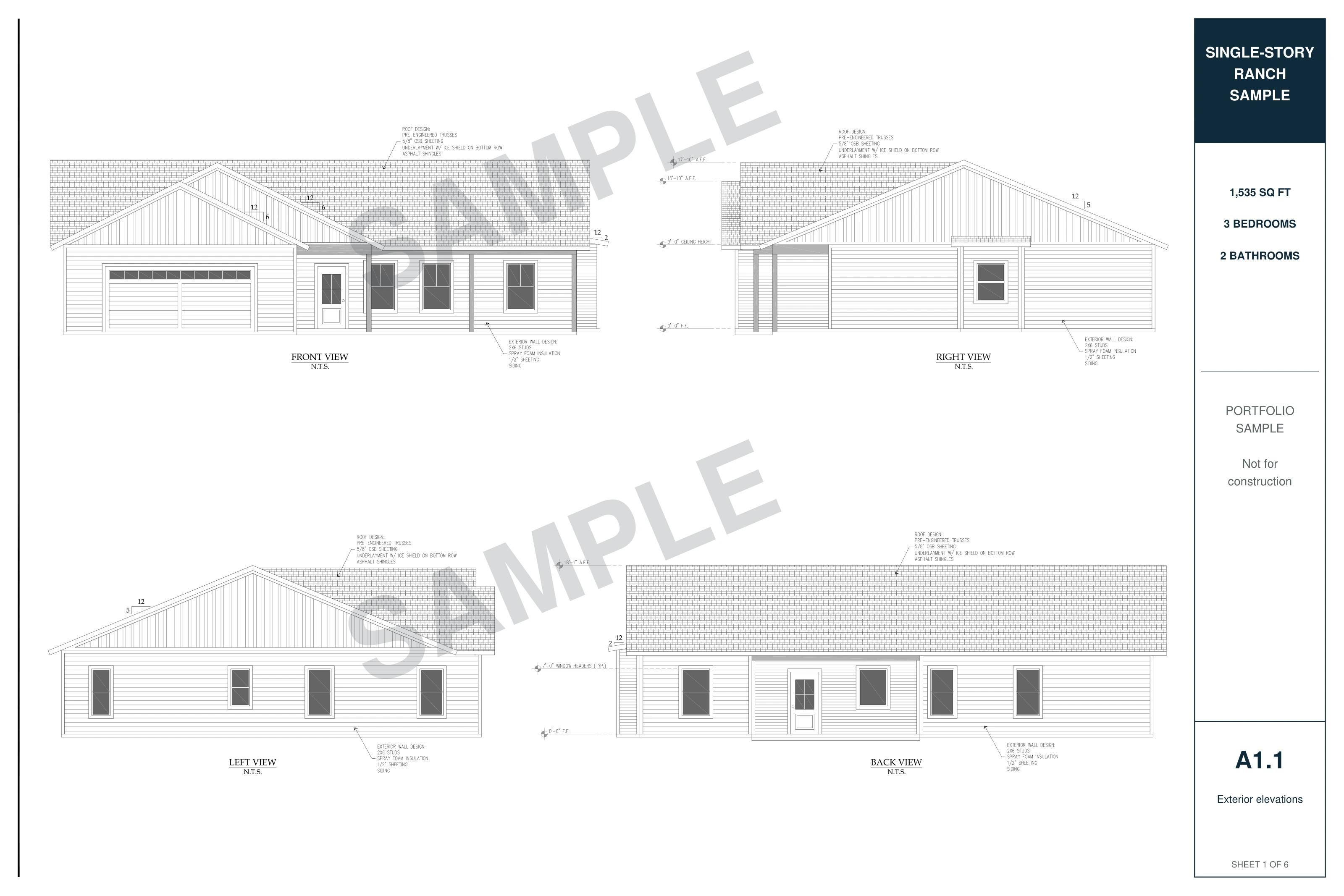

    Exterior elevations, sheet A1.1; anonymized architectural drawing with SAMPLE watermark.

  2. Page 2 of 6 · A2.1

    Floor plan

    Open full-size sheet : Floor plan (opens in a new tab)

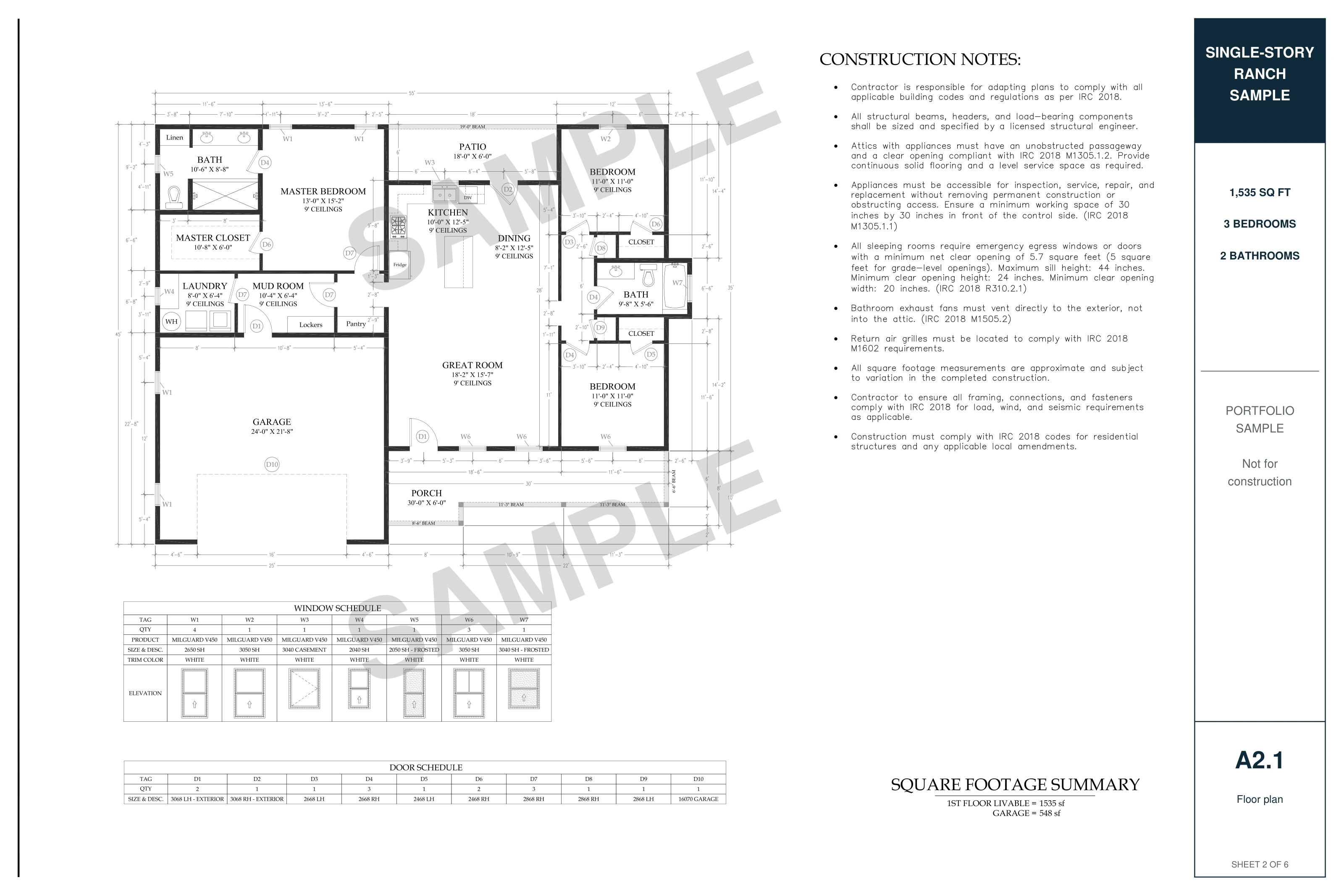

    Floor plan, sheet A2.1; anonymized architectural drawing with SAMPLE watermark.

  3. Page 3 of 6 · A3.1

    Foundation plan

    Open full-size sheet : Foundation plan (opens in a new tab)

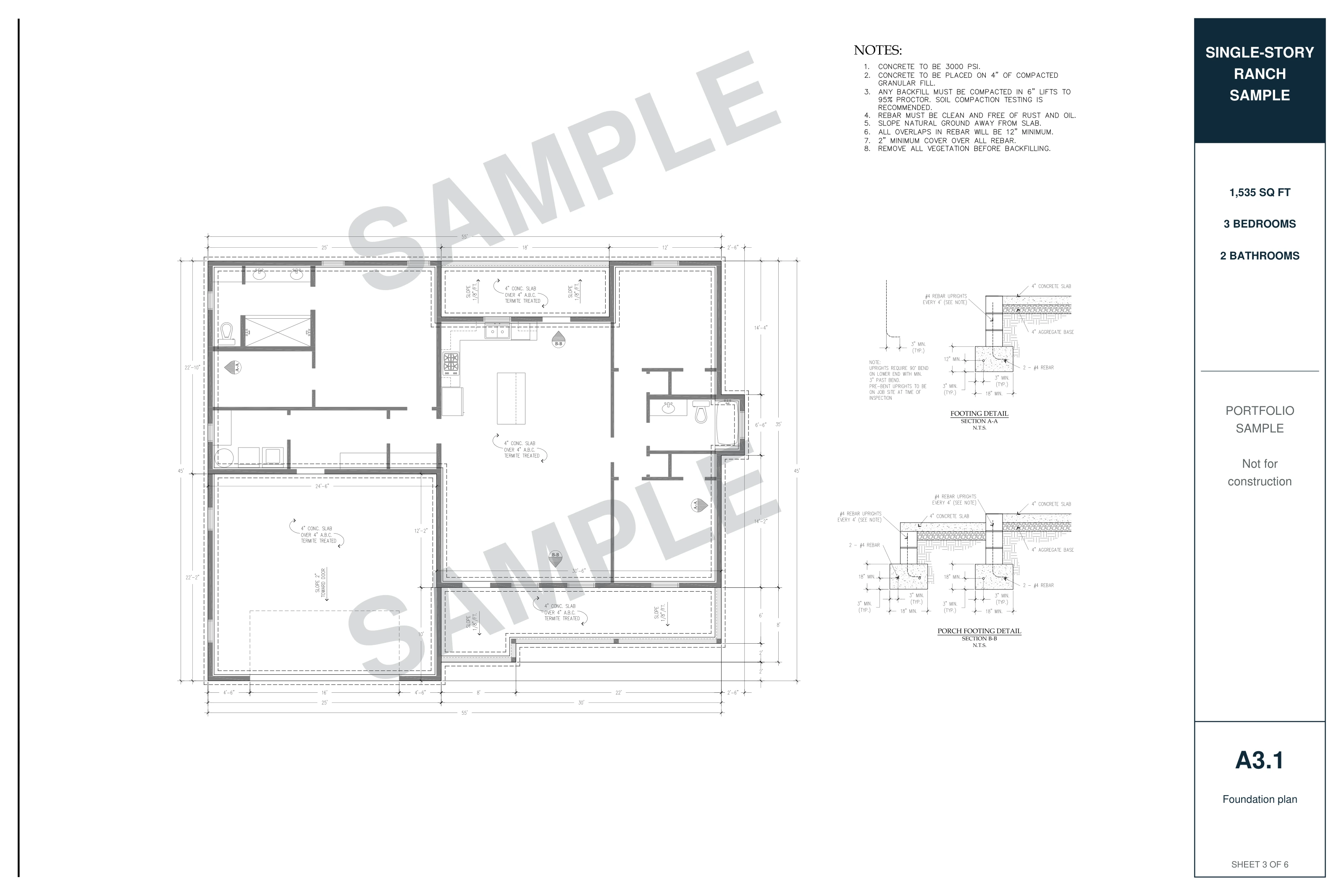

    Foundation plan, sheet A3.1; anonymized architectural drawing with SAMPLE watermark.

  4. Page 4 of 6 · A4.1

    Roof plan

    Open full-size sheet : Roof plan (opens in a new tab)

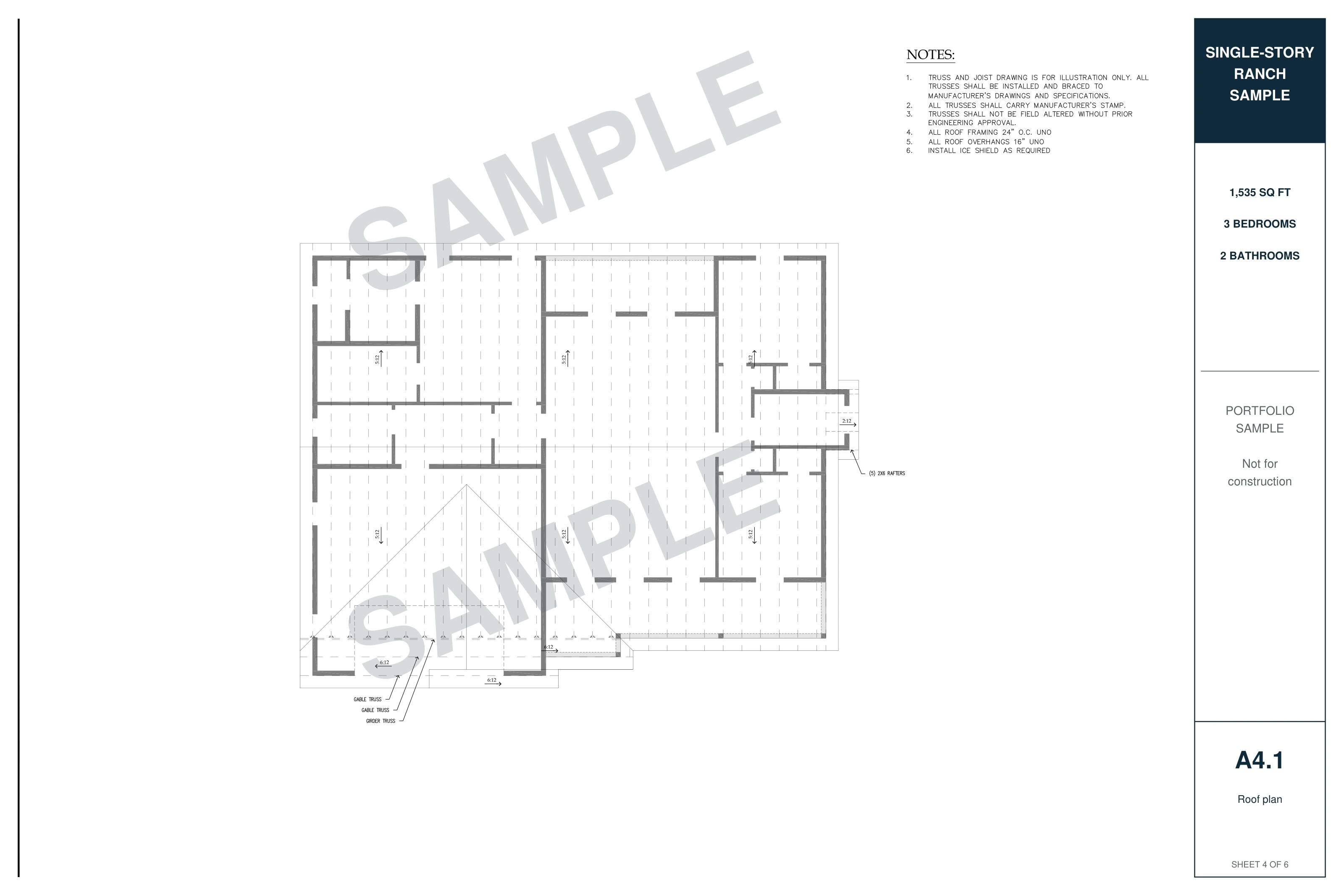

    Roof plan, sheet A4.1; anonymized architectural drawing with SAMPLE watermark.

  5. Page 5 of 6 · A5.1

    Electrical plan

    Open full-size sheet : Electrical plan (opens in a new tab)

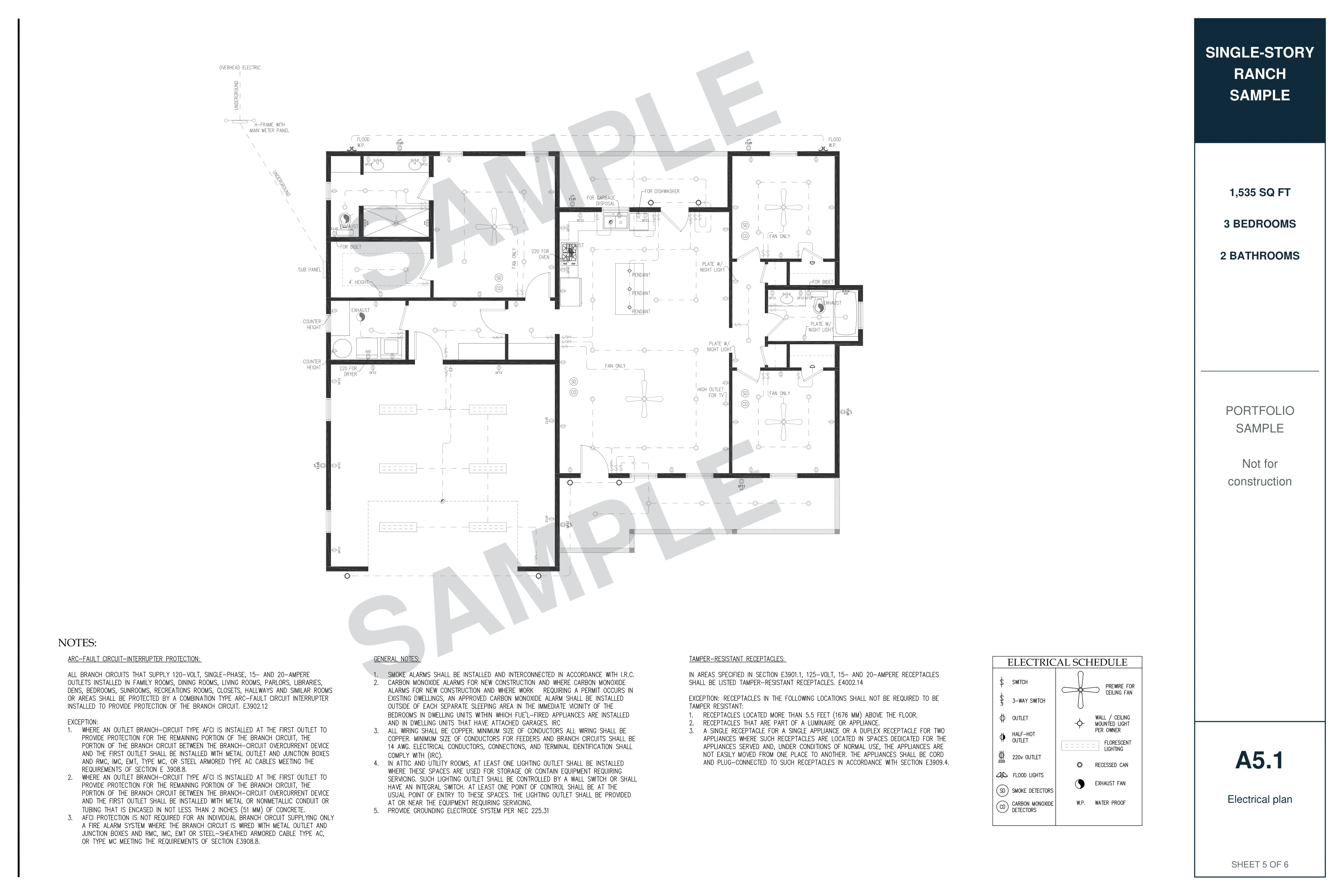

    Electrical plan, sheet A5.1; anonymized architectural drawing with SAMPLE watermark.

  6. Page 6 of 6 · A6.1

    Plumbing plan

    Open full-size sheet : Plumbing plan (opens in a new tab)

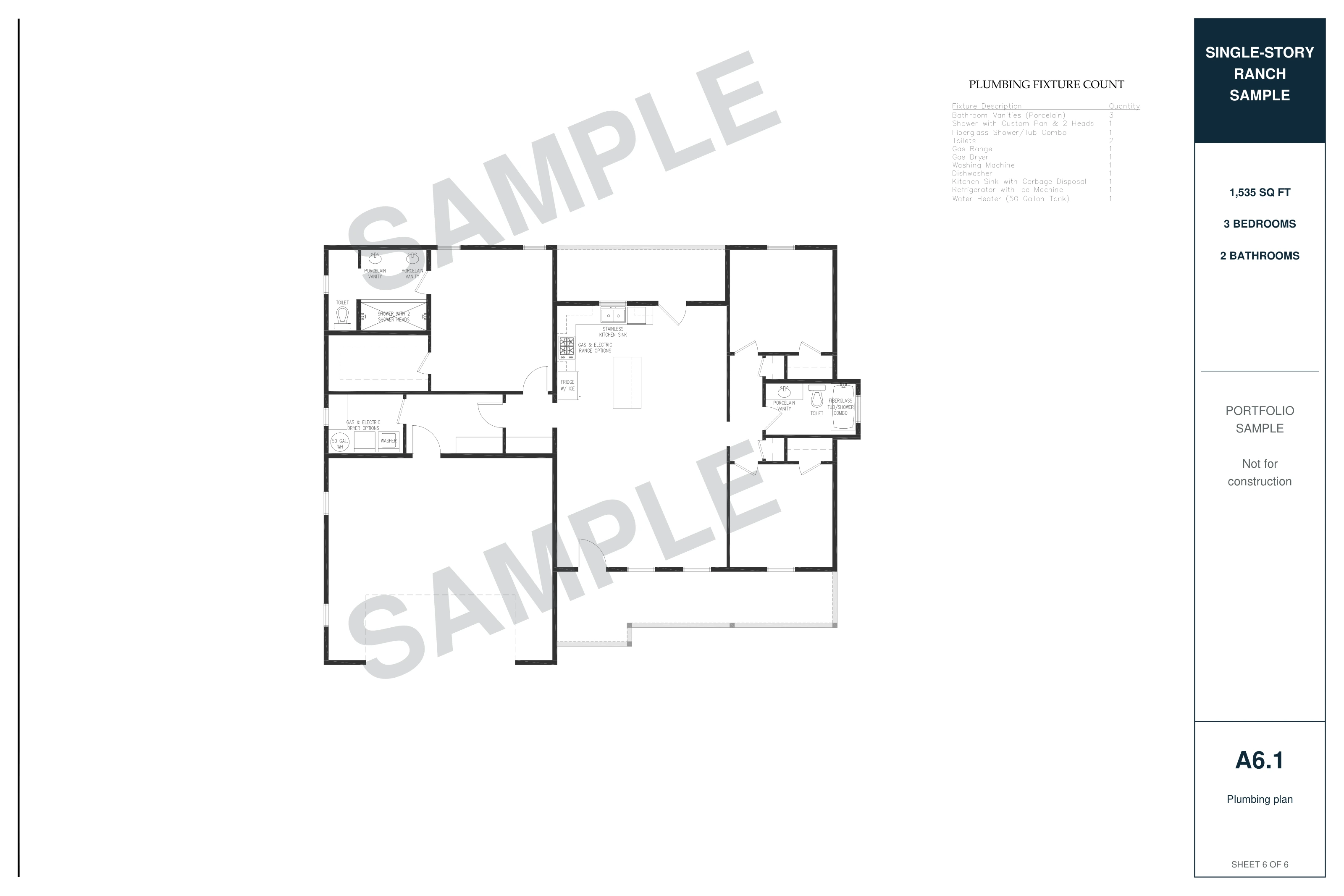

    Plumbing plan, sheet A6.1; anonymized architectural drawing with SAMPLE watermark.
