Contemporary shed-roof cabin
Modern Cabin Sample
- Home size
- 1,250 sq ft
- Bedrooms
- 2
- Bathrooms
- 2
- In this sample
- 7 sheets
Explore the drawings
A compact cabin with a distinctive shed roof, an open loft, and an unfinished basement. The seven sheets include the site plan, exterior elevations, floor layouts, foundation, electrical plans, and construction details.
Every page from this sample set is shown below. Open any sheet at full size to zoom in, or open the watermarked PDF.
Portfolio sample only. Names, addresses, and project locations have been removed, and every page carries a SAMPLE watermark. These drawings are provided for portfolio review only and are not for construction.

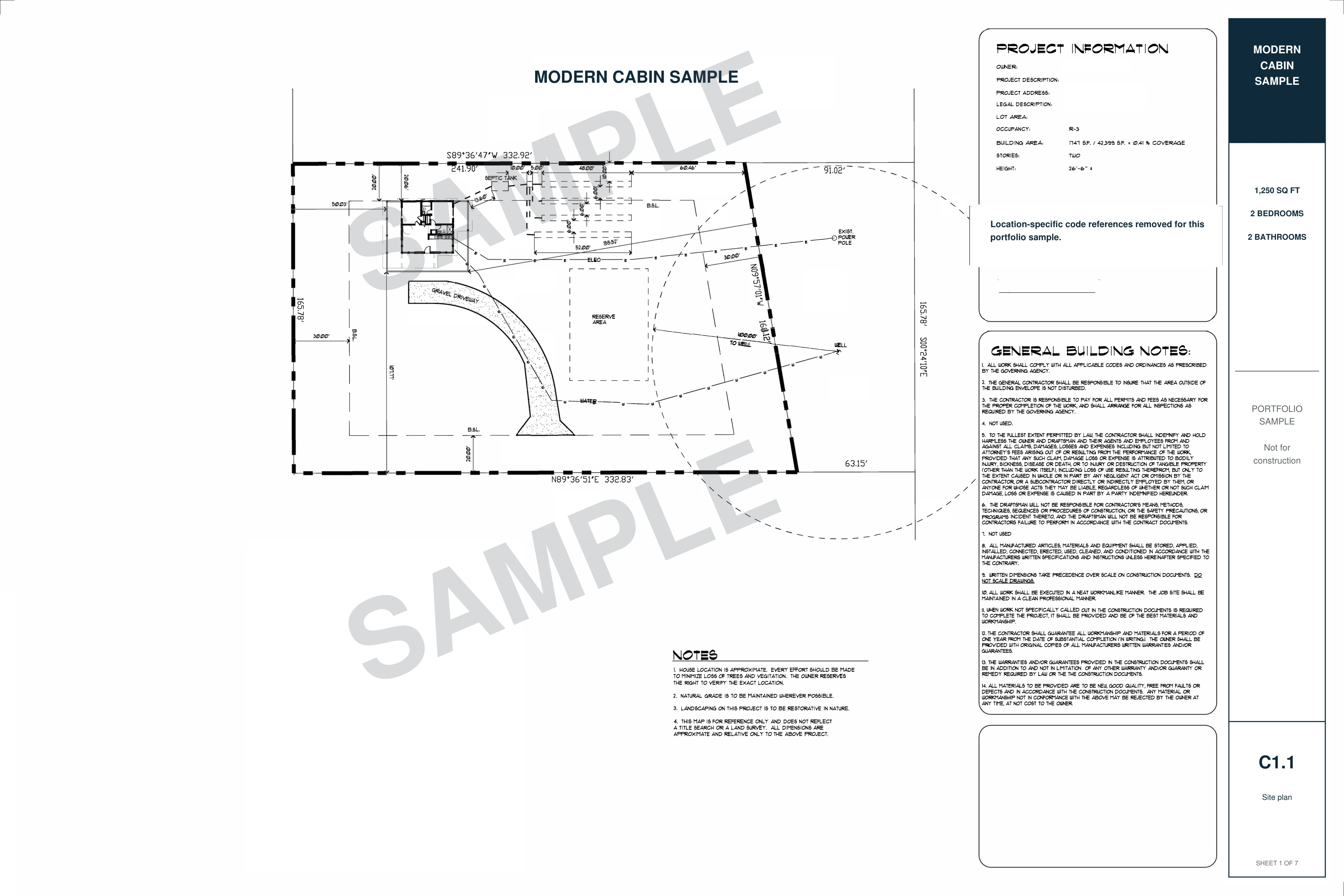

- Open full-size sheet : Site plan (opens in a new tab)
Page 1 of 7 · C1.1
Site plan

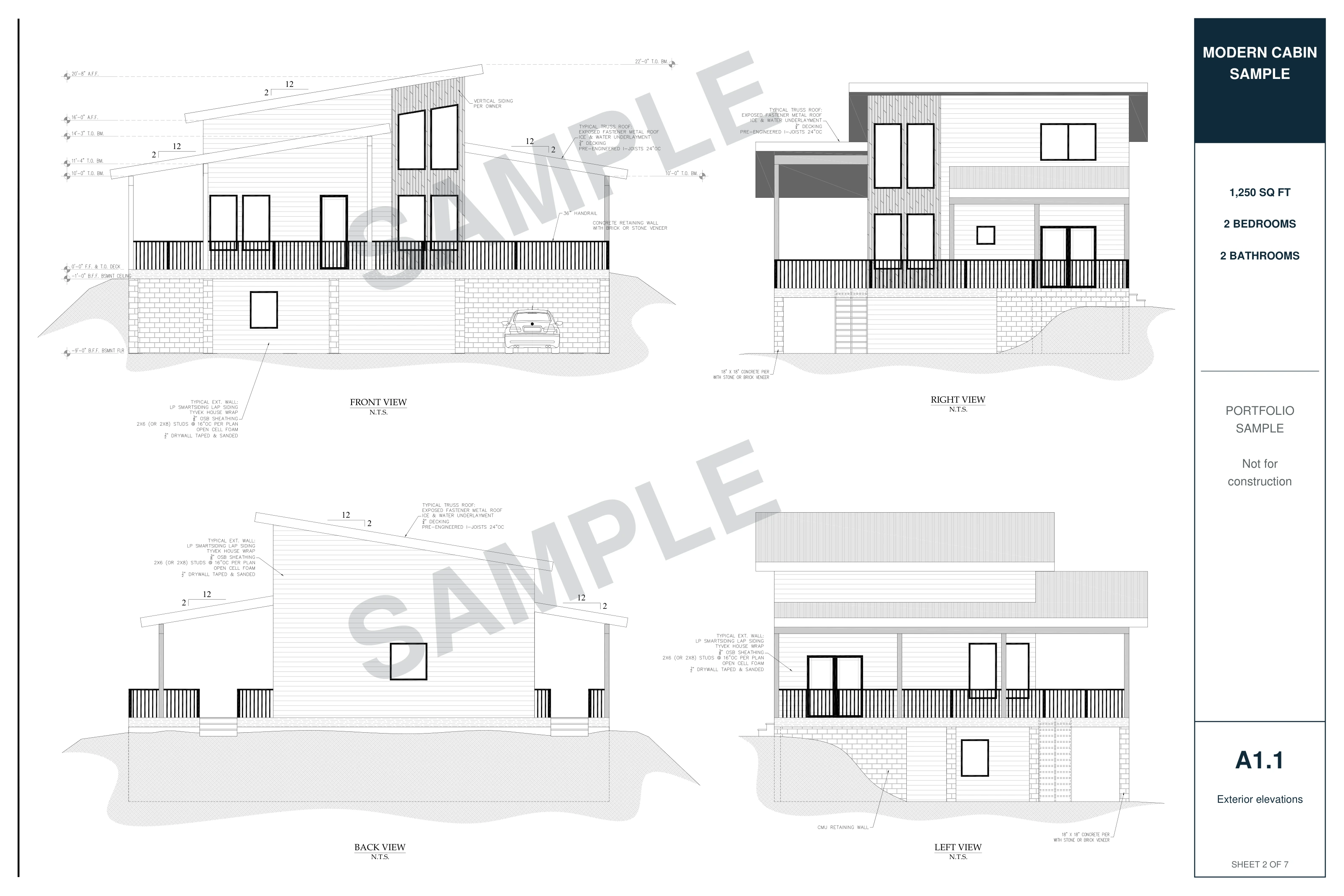

- Open full-size sheet : Exterior elevations (opens in a new tab)
Page 2 of 7 · A1.1
Exterior elevations

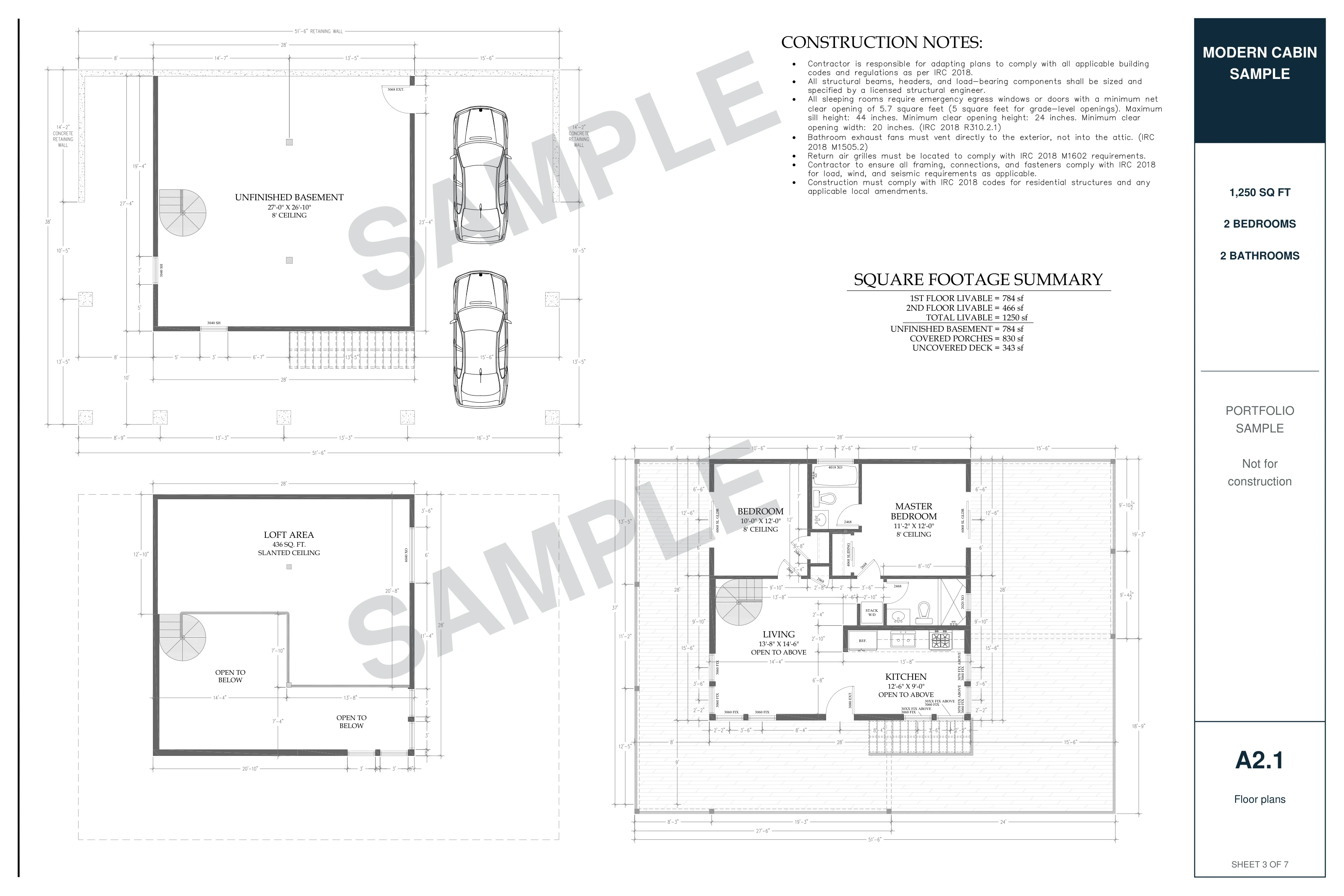

- Open full-size sheet : Floor plans (opens in a new tab)
Page 3 of 7 · A2.1
Floor plans

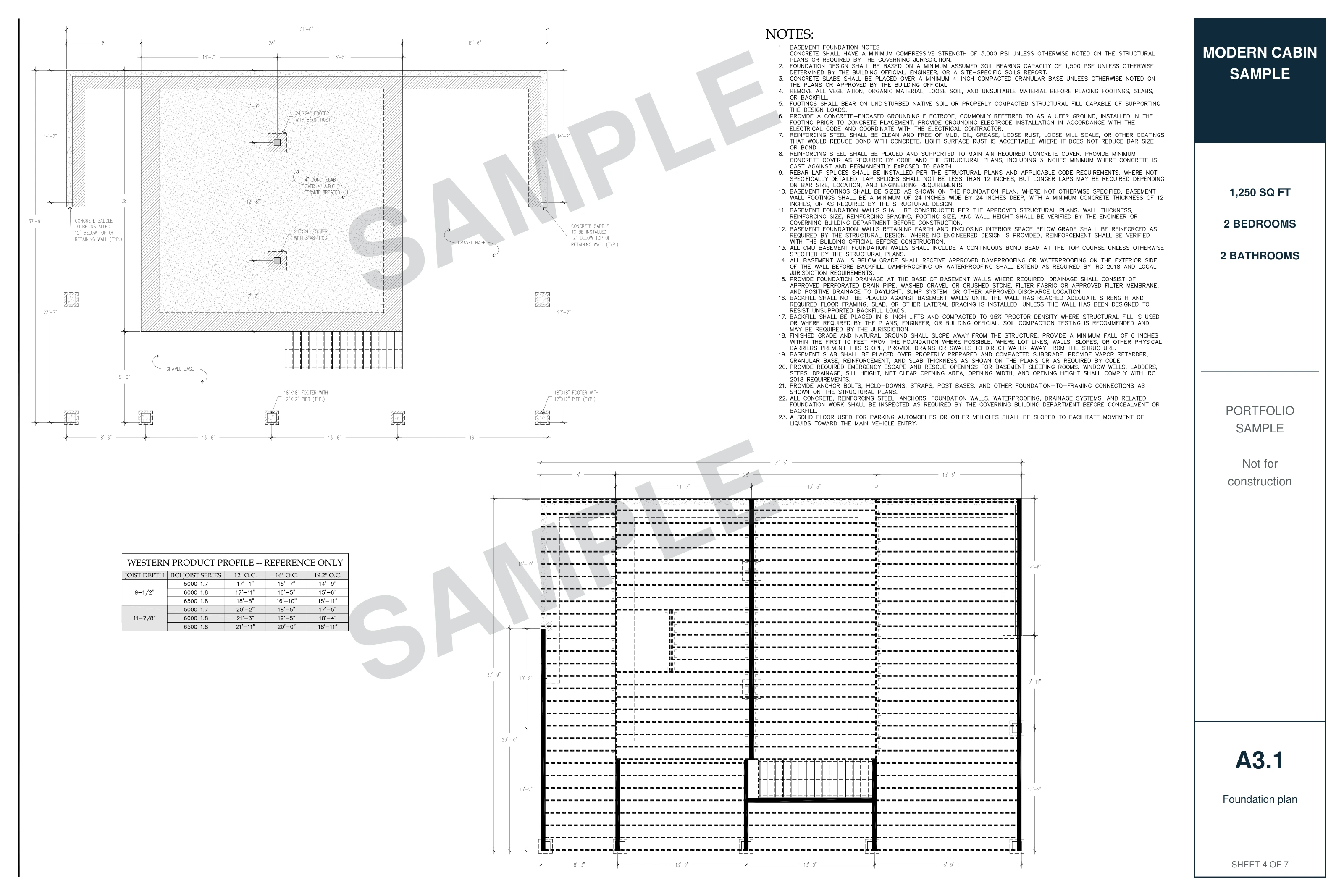

- Open full-size sheet : Foundation plan (opens in a new tab)
Page 4 of 7 · A3.1
Foundation plan

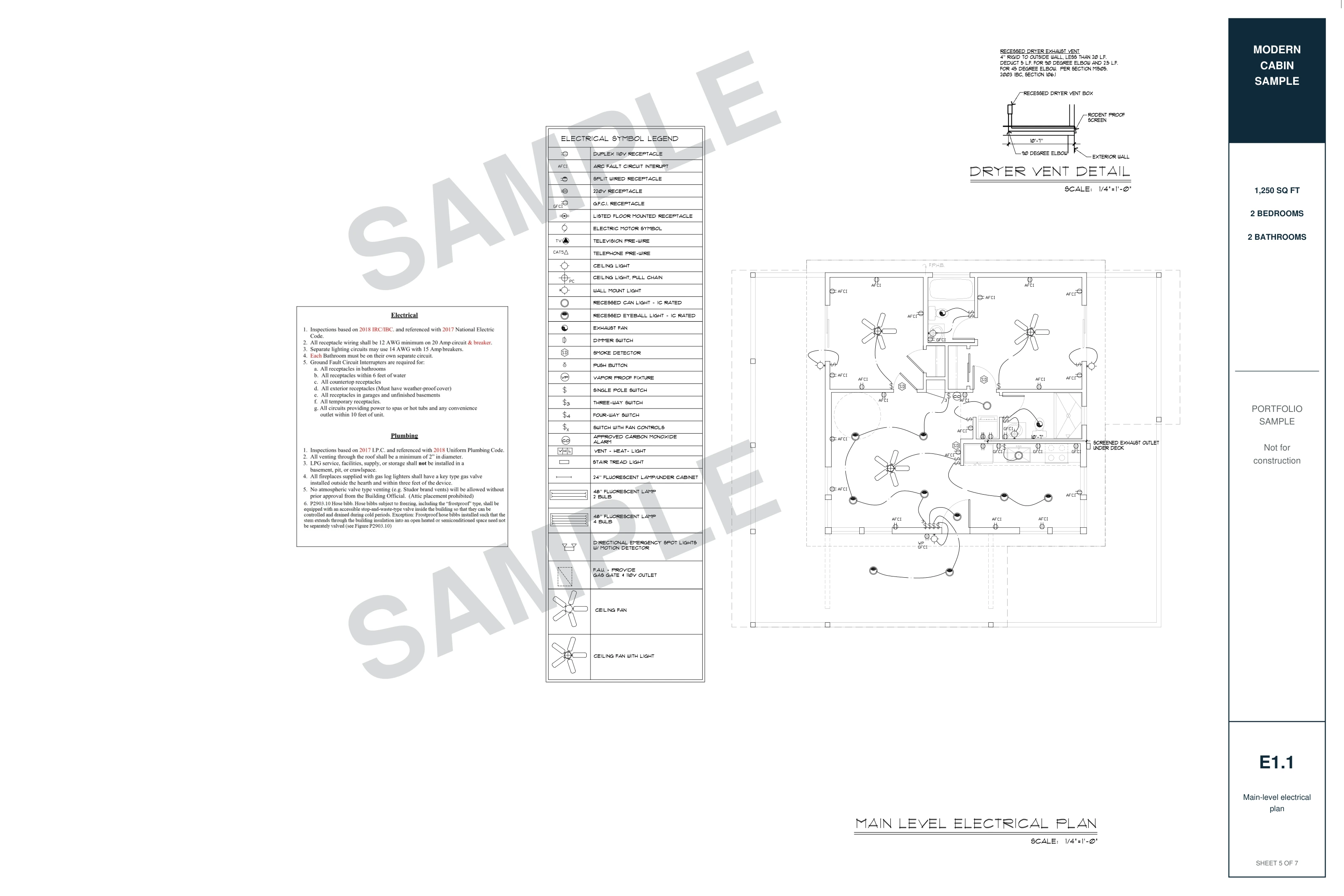

- Open full-size sheet : Main-level electrical plan (opens in a new tab)
Page 5 of 7 · E1.1
Main-level electrical plan

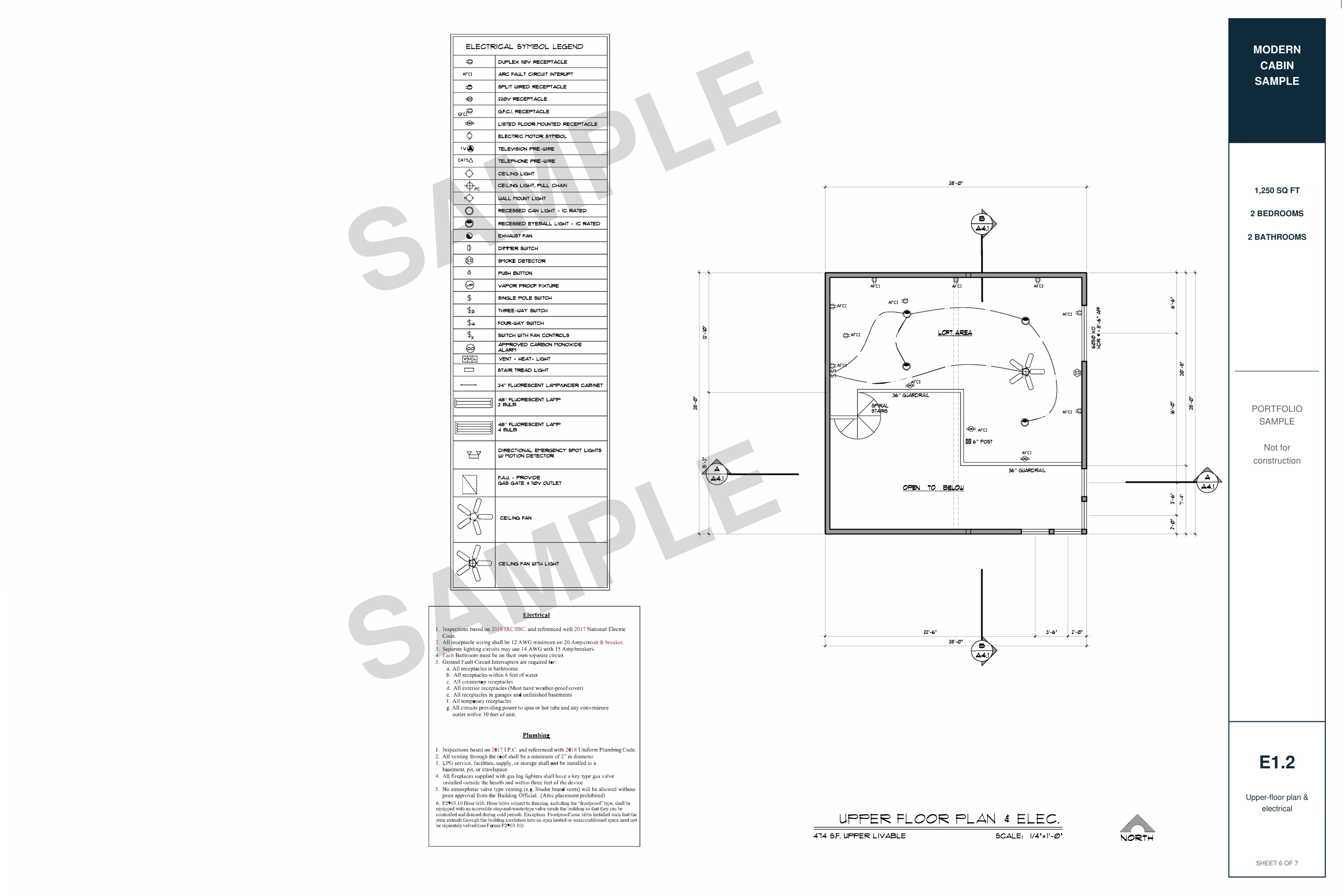

- Open full-size sheet : Upper-floor plan & electrical (opens in a new tab)
Page 6 of 7 · E1.2
Upper-floor plan & electrical

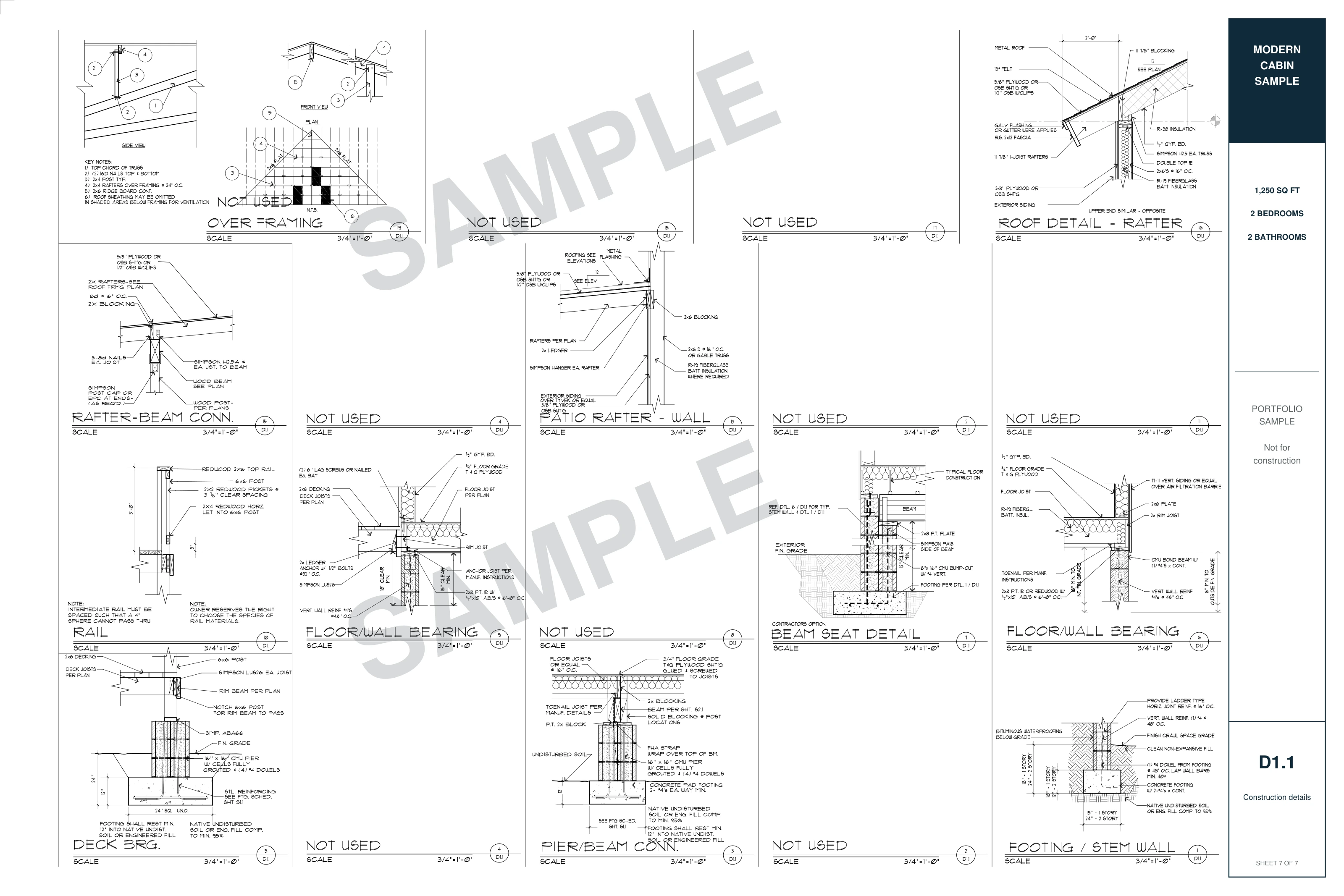

- Open full-size sheet : Construction details (opens in a new tab)
Page 7 of 7 · D1.1
Construction details
